Large water grinding white corundum grinding wheel

Large water grinding white corundum grinding wheel

The large water mill white corundum grinding wheel is a high-efficiency grinding tool suitable for precision grinding of high-hardness metal materials.with white corundum as the abrasive,It has the characteristics of high grinding efficiency and low heat generation.It is widely used in machinery manufacturing, automobiles, aerospace and other fields.The large water grinding white corundum grinding wheel is made of high purity alumina as raw material,slightly harder than brown corundum,Lower toughness, the abrasive grains are prone to fragmentation during grinding,Thereby reducing grinding heat and avoiding workpiece overheating damage。

Core advantages: good self-sharpening, high grinding efficiency,Reduce the time of dressing and the frequency of grinding wheel replacement,With strong heat resistance and thermal stability, it is suitable for precision grinding.

Key parameter: the grain size should be selected according to the workpiece material.(such as coarse grained for machining with large surface roughness)，Hardness (soft grinding wheel for hard workpiece) and model (e.g., parallel grinding wheel 1a1)。

Domains: mechanical manufacturing, automotive manufacturing, aerospace, tool and die processing, etc.

Purchase Points: Select the sanding wheel model and parameters based on the hardness of the workpiece and the surface precision requirements;Specifications for large water grinding machine are preferred，Diameter 350-400mm, hole diameter 127-203mm)。

Model:
350*40*127 WA46L-120L
Brand:
Wanyuan

Quantity:
Size:	P350X40X127 P400X50X203
Availability:





Inquire Add to Basket

Product Description

Product Parameter Information

The large water mill white corundum grinding wheel is a high-efficiency grinding tool suitable for precision grinding of high-hardness metal materials.with white corundum as the abrasive,It has the characteristics of high grinding efficiency and low heat generation.It is widely used in machinery manufacturing, automobiles, aerospace and other fields.The large water grinding white corundum grinding wheel is made of high purity alumina as raw material,slightly harder than brown corundum,Lower toughness, the abrasive grains are prone to fragmentation during grinding,Thereby reducing grinding heat and avoiding workpiece overheating damage。

Core advantages: good self-sharpening, high grinding efficiency,Reduce the time of dressing and the frequency of grinding wheel replacement,With strong heat resistance and thermal stability, it is suitable for precision grinding.

Key parameter: the grain size should be selected according to the workpiece material.(such as coarse grained for machining with large surface roughness)，Hardness (soft grinding wheel for hard workpiece) and model (e.g., parallel grinding wheel 1a1)。

Domains: mechanical manufacturing, automotive manufacturing, aerospace, tool and die processing, etc.

Purchase Points: Select the sanding wheel model and parameters based on the hardness of the workpiece and the surface precision requirements;Specifications for large water grinding machine are preferred，Diameter 350-400mm, hole diameter 127-203mm)。

Product Name	Large water grinding white corundum grinding wheel
Size	P350X40X127; P400X50X203
Material	Resin sintered diamond material
Process	Sand plating process
Features	High efficiency, high precision, high hardness, high compressive strength, good wear resistance
Applicable materials	Surface and cylindrical grinding of carbide measuring tools, tungsten steel, high-speed steel, alloy steel, glass, gemstone, magnetic materials, ceramics, molds, etc., and can also be used for cutting grinding and forming grinding

Product Display

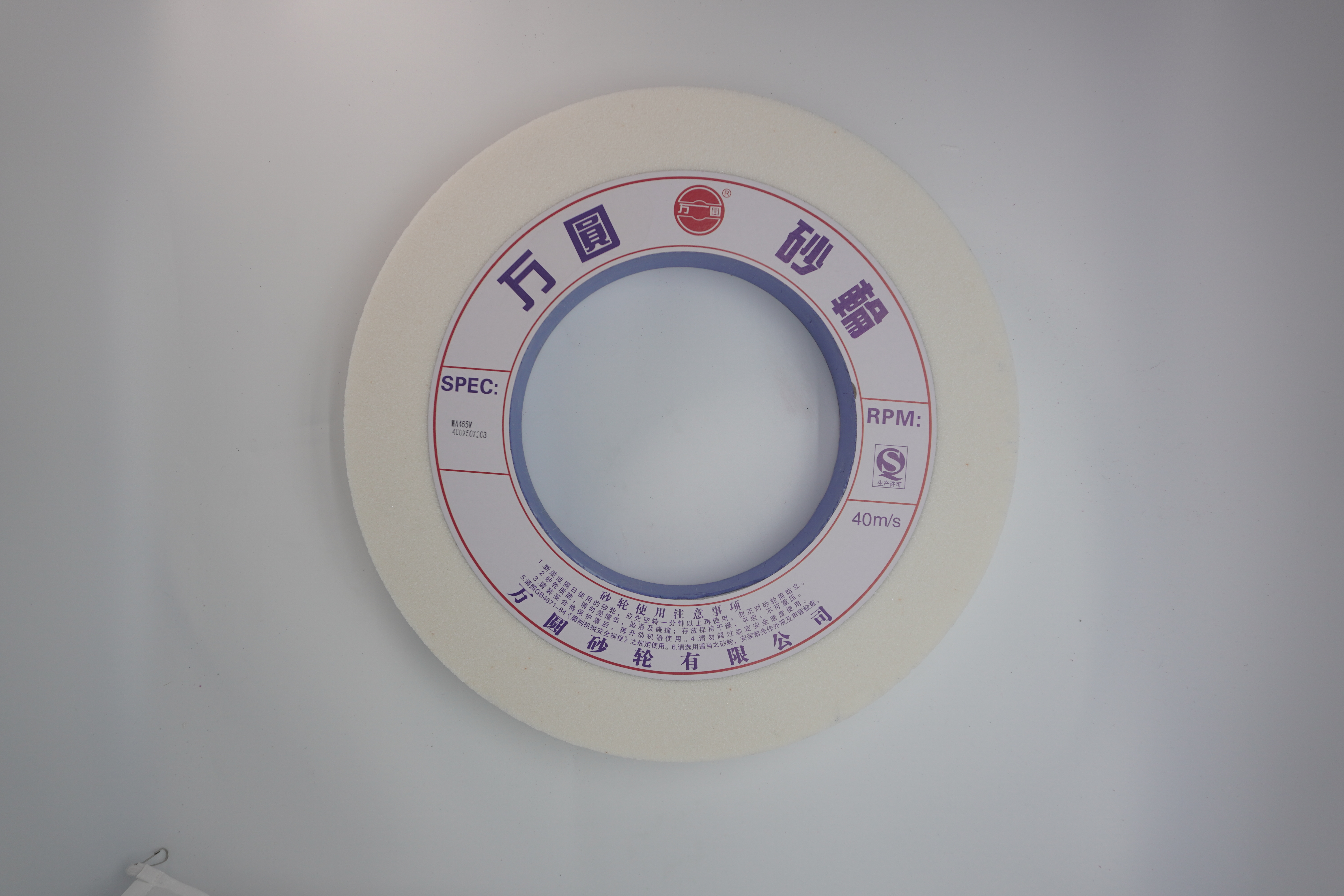

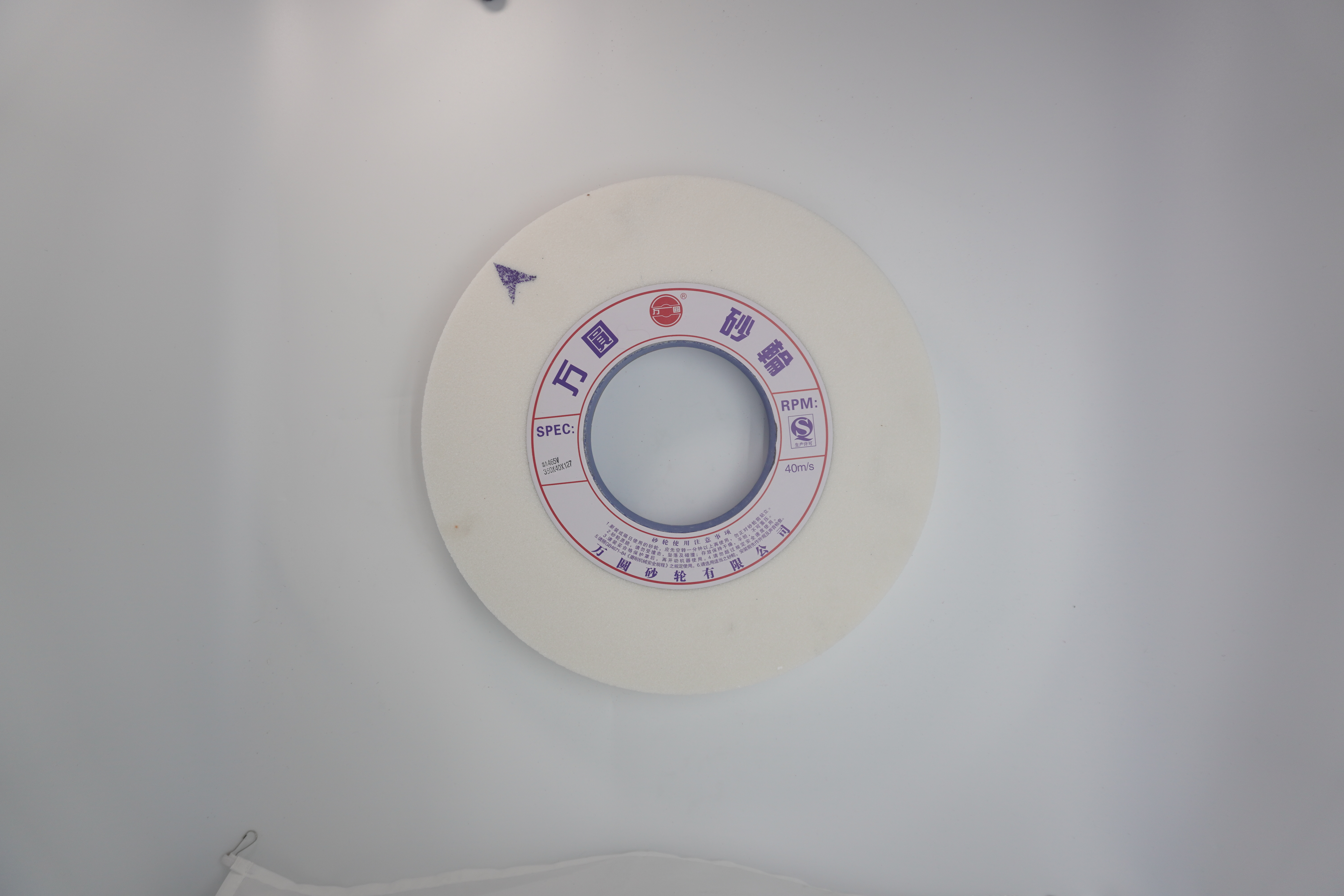

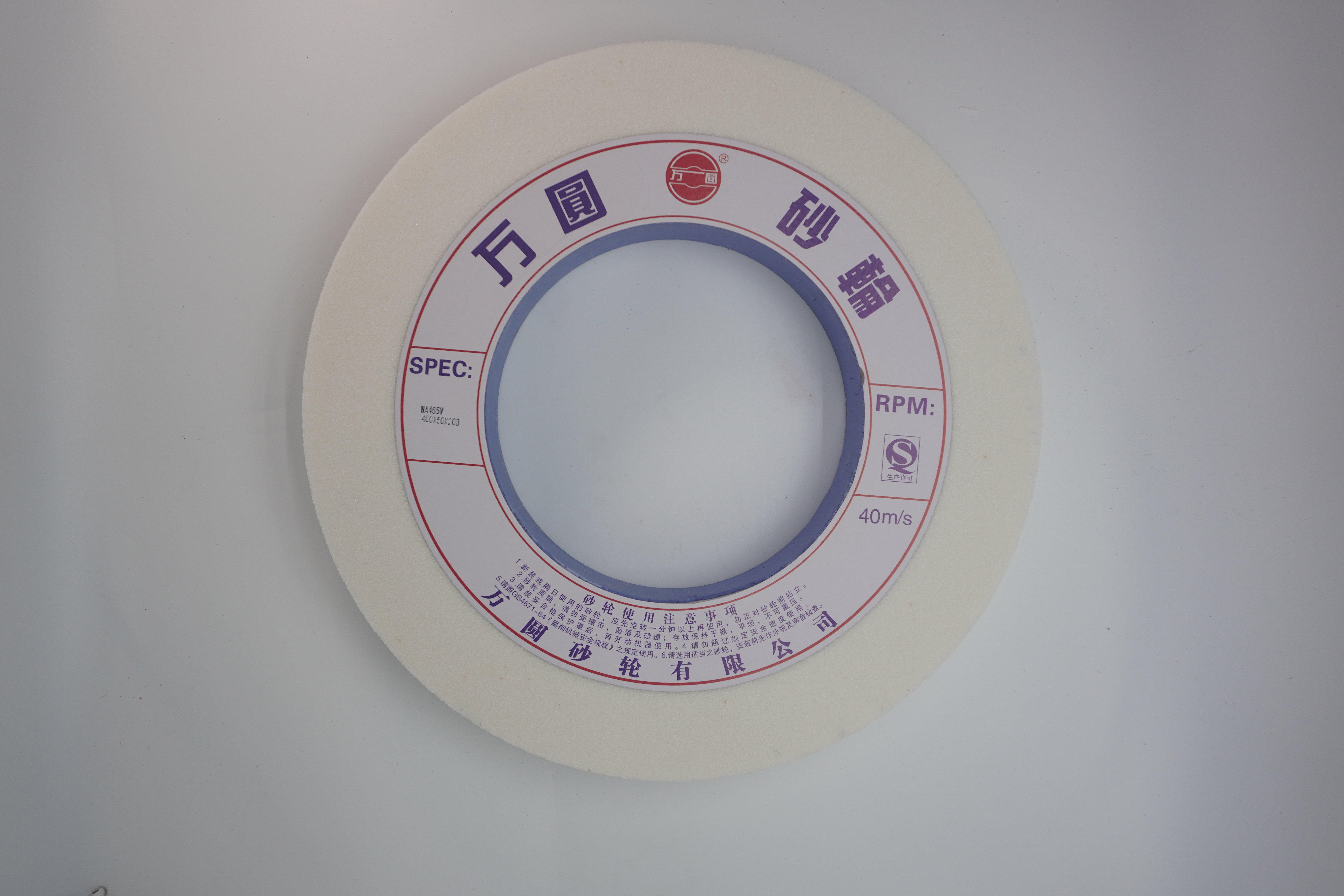

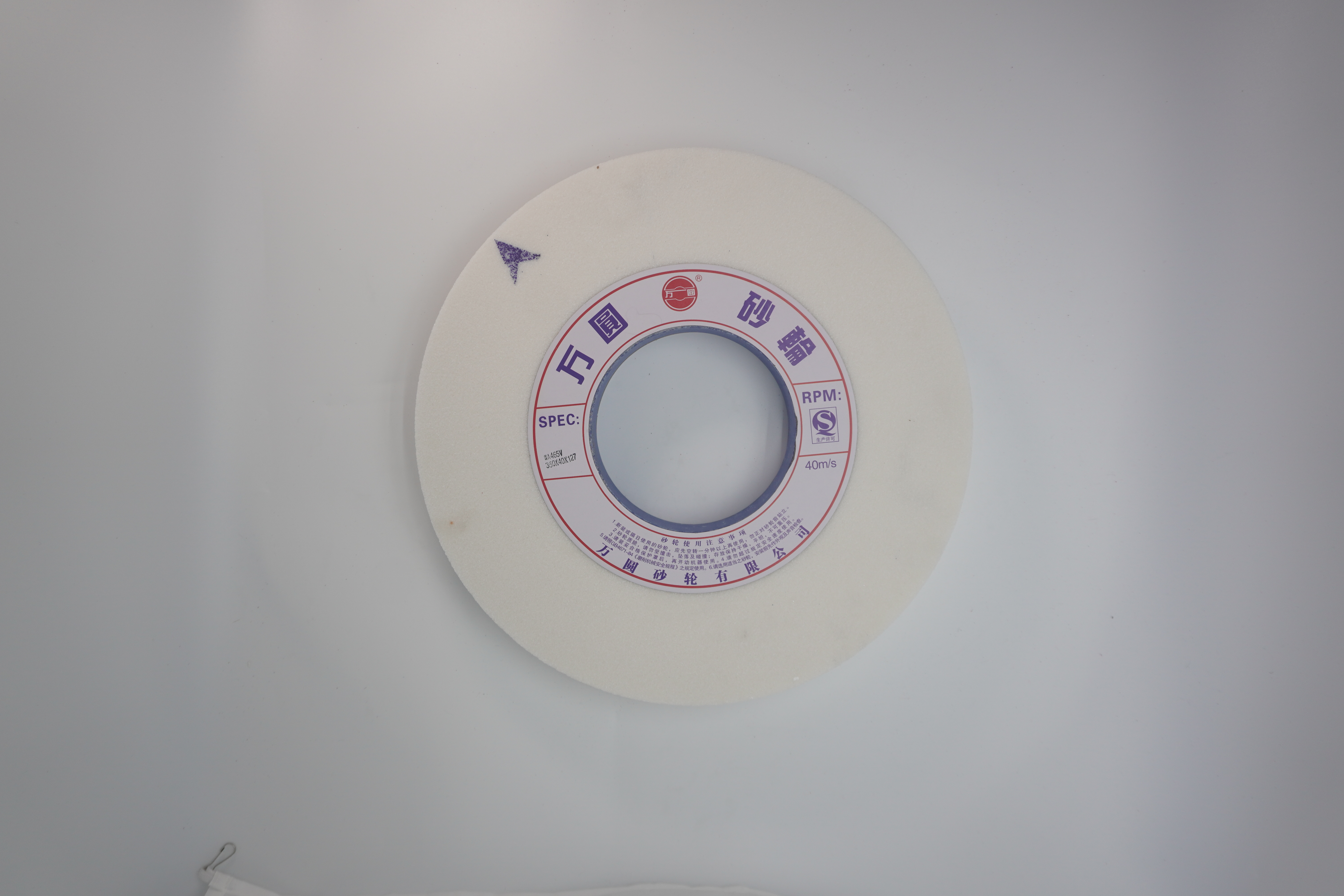

White Corundum Large Water Grinding Wheel
